Jackson Pratt® Style Silicone “JP” Flat Drains










 Jackson Pratt® Style Silicone “JP” Flat Drains

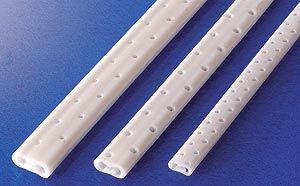

  • This JP drain system combines a transparent silicone round tube and a white perforated flat drain. The inner wall of the implanted flat segment features tooth-like structure to prevent possible occlusion when the tube is pressed or kinked

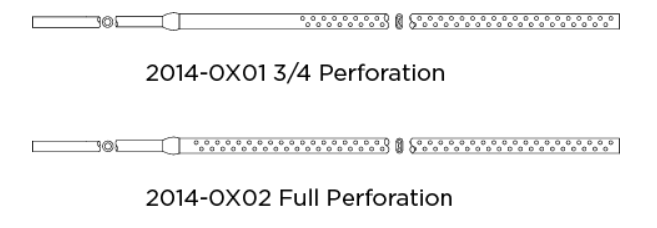

  • Both 3/4 or full perforation JP drains are available offering optimal drainage with X-ray opaque effectiveness throughout its entire implanted segment
  • Smooth tapered connection between white flat drain and round tube minimizes trauma during insertion with a trocar and removal from the wound
  • Visual inspection and fluid observation is optimized through the transparent round tube
  • Use C.W.D. Reservoir Bulbs for fluid suction and collection
  • Used for various surgeries
  • Sterile double-packaged with a peel pouch
  • 10 drains per case
  • Available in a variety of sizes shown below
  • Latex free and 100% silicone
  • Products are compliant and Registered with the FDA
  • Free shipping with orders of two or more cases
  • 30 day total Satisfaction Guaranteed

Specifications:

Cat. No. White flat drain Transparent round tube Description
 H x W Length I.D. x O.D. length
2014-0071 3 X 7 mm 200 mm 3 x 5 mm 600 mm 3/4 perforation
X-ray opaque effective
2014-0101 4 X 10 mm
2014-0052 2 x 4.5 mm * 200 mm 3 x 5 mm 600 mm Full perforation
X-ray opaque effective
2014-0072 3 X 7 mm
2014-0102 4 X 10 mm
